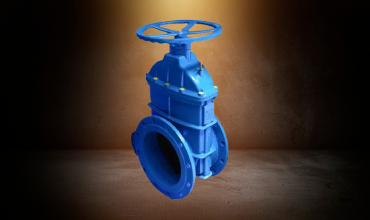

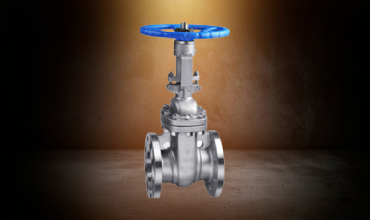

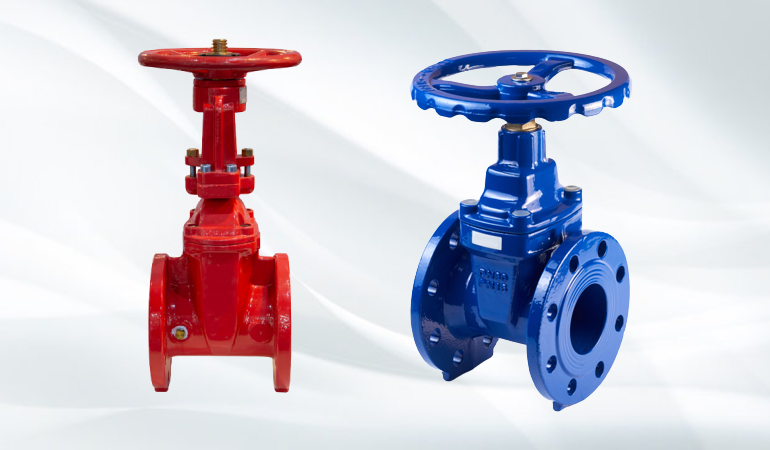

Gate Valve Specifications
- Design Standards : ASME B16.34, API 600, API 602
- Sizes : 1/2” to 60”.
- Class : 150# to 2500#
- Material : Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel, Nickel Alloy, Aluminium Bronze, Cast Iron, Ductile Iron.
- Construction : OS&Y, Rising Stem & Non-Rising Hand Wheel.
- Wedge / Seat / Bore Design : Standard Bore, Solid Wedge, Flexible Wedge, Seating Surface Overlay
- Special Design Features : Bolted Bonnet, Welded Bonnet, Pressure Seal Bonnet, Cryogenic Design.
- Flange Designs : Flanged End, Butt Weld End, Screwed End, Socket Weld End.
- Actuation : Handwheel Operated, Gear Operated, Actuator Operated
