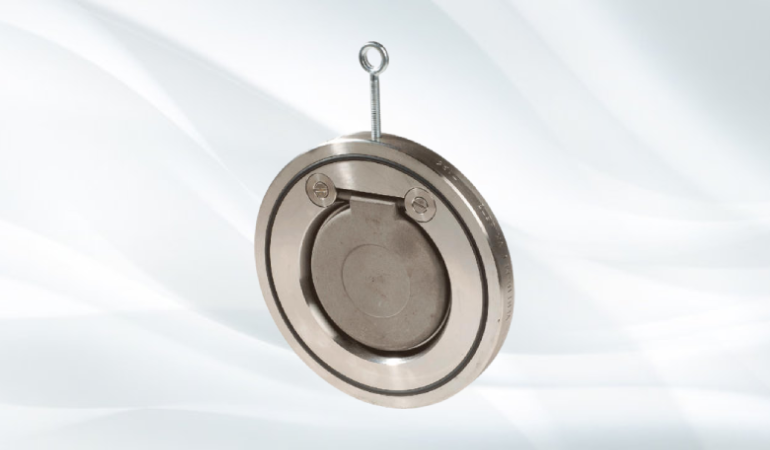

AL 6D Short Pattern Single Plate Wafer Check Valve
Technical Data
- Design : API 6D/ API 594
- Pressure Temperature Rating : ASME B 16.34
- Face to Face/ End to End : API 6D
- End Connection Dimension : Wafer to suit PN 20 (ASME 150 Class),PN 50 (ASME 300 Class), PN 100 (ASME 600 Class)
- Inspection and Testing : ISO 5208/ API 598
| Part Name | Material |
| Body | GG 25/ GGG 40/ A 126 WCB/ A 351 CF 8/ CF 8M |
| Claper / Disc | GG 25/ GGG 40/ A 126 WCB/ A 351 CF 8/ CF 8M |
| Body Seal/O Ring | Nitrite/ EPDM |
| Clapper/ DIsc Seal | AISI 304/ AISI 316 |
| Pin | AISI 304/ AISI 316 |
